Grade 80, alloy steel, heat treated.

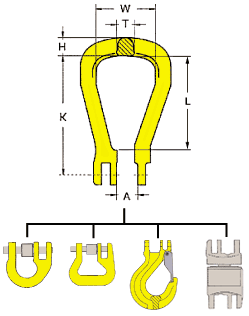

For use with grade 80 single leg slings and Half Coupler, as attachment to Coupling Hooks, Web/Round Sling Connector, and Chain Swivel.

Nominal
Link dia.
inch		 Stock Code
No.		 For chain
dia. inch		 WLL lbs
DF 4:1
vertical		 Dimensions inch Weight
each
lbs
K W T H A
1/2 LR-OML-025 9/32 4,500 3.9 1.9 0.6 0.6 0.59 0.7
3/4 LR-OML-038 3/8 7,100 5.0 2.5 0.7 0.7 0.79 1.5
7/8 LR-OML-050 1/2 12,000 5.7 2.8 0.9 0.8 0.98 2.2
7/8 LR-OML-062 5/8 18,100 6.8 3.1 0.9 1.0 1.18 3.5
1-1/4 LR-OML-075 3/4 28,300 8.0 4.0 1.2 1.4 1.42 6.6
