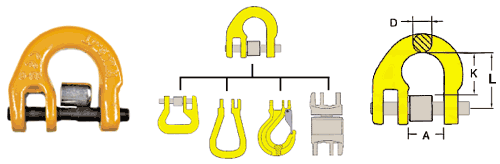

Grade 80, forged alloy steel.

Used with Open Master Link, Coupling Hooks, and Chain Swivel. Supplied with load pin and lock sleeve.

For chain
diameter
inch		 Stock Code
No.		 Dimensions inch Weight
each lbs
K A D L
1/4 – 5/16 C8-HC-025-RC 0.89 0.71 0.35 1.10 0.2
3/8 C8-HC-038-RC 1.06 0.98 0.50 1.30 0.4
1/2 C8-HC-050-RC 1.38 1.18 0.62 1.77 0.9
5/8 C8-HC-062-RC 1.51 1.42 0.75 1.97 1.3
3/4 C8-HC-075-RC 1.81 1.65 0.87 2.36 2.4
7/8 C8-HC-088-RC 2.32 1.93 0.94 3.00 3.8
1 C8-HC-100-RC 2.44 2.19 1.19 3.20 6.0
1-1/4 C8-HC-125-RC 3.11 2.72 1.42 4.00 11.0
