Unitrex XS-8 consists of eight (8) Unitrex ropes plied together to form an 8-strand plaited cable. Very strong, very light and very abrasion resistant, Unitrex XS-8 is unique.

The base cable, Unitrex, is made of parallel strands of Ultra High Molecular Weight Polyethylene (UHMWPE) fiber, bonded together with a rubberized adhesive, wound with rubber tape and over-braided with a polyester jacket, which is saturated with urethane. The subsequent oven curing fuses the tape, making a very tough cable — or, in this case, strands — to make an even larger strength member. Unitrex XS-8 is easily spliced with a straightforward tucking procedure.

Unitrex XS Max Wear, Uniline’s high-tech cousin, is a parallel-core rope of Ultra High Molecular Weight Polyethylene (UHMWPE), wrapped with a neoprene tape and over-braided with a tough jacket of high-tenacity polyester. The result is a synthetic cable, somewhat stiffer than your usual rope, which is much like wire in its stretch characteristics.

Unlike wire, Unitrex is much lighter and easily handled. Due to its toughness, we are comfortable assigning it a higher working load rating, which is 25% of its breaking strength.

Unitrex XS Max Wear has high strength retention in service, which is supported by field studies and our long-standing track record with Uniline polyester. Unitrex’s tough rubber layer protects its UHMWPE core, and the outer jacket is saturated with urethane, making it the toughest UHMWPE rope you can buy. All of Yale’s parallel-core ropes are torque free, with bonded cores preventing contamination of the internal strength member. Unitrex XS can be quickly terminated and/or joined with a TechEye2 or TechJoin2.

Sierra 75 is a 12-strand single braid of Dyneema® SK75 UHMPE fiber enhanced with Yale’s Maxijacket High Performance coating. Designed in the likeness of our Ultrex, this product was created utilizing our unmatched engineering and manufacturing processes. Built tough and designed for enhanced strength to meet the demands of your application.

Sierra 78 is a 12-strand single braid of bio-based Dyneema®, an Eco Sustainable fiber. Made with bio-based feedstock, this fiber maintains the unique properties of Dyneema® while providing a more sustainable solution without compromising final product performance. Yale is excited to be one of the first to partner with DSM Protective Materials on this commitment to realize a more sustainable product. Choose Sierra 78 for exceptional performance and a certified green product for your equipment.

Portland Braid double-braided polyester offers high value at a very competitive price. Built in the same manner as our Double Esterlon, Portland Braid offers consistent performance at an economical price.

The fiber used to produce Portland Braid is sourced from Yale’s qualified suppliers. Portland Braid can be special ordered in ultra-long continuous lengths. We also offer our optional Maxijacket urethane coating to further enhance the rope’s wear resistance.

Mega Max is double braid rope with a unique design that provides the ultimate in abrasion protection while still providing the highest strength possible, all in a Ultra High Molecular Weight Polyethylene (UHMWPE) fiber construction.

The load bearing core is made of 12-strand Ultrex and provides 100% of the strength in this design. It is then over-braided and protected again by UHMWPE fiber, the most abrasion resistant fiber available.

Hy-Dee Brait is an 8-strand bi-polymer rope with extraordinary dielectric properties. The rope is nubby, which provides excellent grip, and treated with a proprietary chemical mixture Yale calls Aralube-dielectric.

This treatment is the key to Hy-Dee Brait’s wet dielectric performance and allows us to make the highest dielectric-strength rope commercially available. It is easy to splice with a tucking procedure or by the quick splice method.

This product is 100% lot tested for dielectric conformance.

Nylon Brait combines braiding technology with plaited rope optimizing the best of both rope styles. Nylon Brait’s most outstanding feature is its high energy absorption, which comes from a combination of the very long yarn path and stranditure developed especially to maximize energy absorption.

Nylon Brait can absorb (or mitigate) greater amounts of dynamic energy than 3-stranded or braided rope structures with less damage. Brait’s energy absorption also keeps the corresponding loads on attachment points smaller since the rope does more work internally. Brait is easily spliced and the spliced rope delivers 100% of the ropes advertised strength.

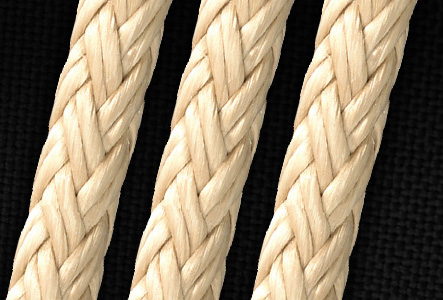

Aracom 100 is a 12-strand rope comprised of 100% Technora® Aramid fiber. Teijin’s Technora® Aramid is selected for this rope due to its ease of handling and reduced internal yarn-on-yarn friction, which greatly increases this Aramid’s longevity.

Before we twist this fiber we over apply our own exclusive Aralube coating which improves its translation efficiency as we process it through our manufacturing facility. The rope is twisted and braided with sufficient firmness to be considered self-supporting although many users opt for our Maxijacket urethane coated version which greatly increases its abrasion resistance. Aramid has inherent temperature resistance and has little creep once the rope’s permanent elongation is exercised out.

Ultrex is a 12-strand single braid of Ultra High Molecular Weight Polyethylene (UHMWPE) fiber from DSM Protective Materials and enhanced with Yale’s Maxijacket High Performance coating, which supplies superior abrasion resistance. Ultrex’s braid angles and twist level are designed to optimize break strength and keep stretch low.

UHMWPE is the most forgiving high-modulus fiber, giving better sheave-cycling capabilities than other high-tech fibers. Ultrex has zero water absorption and maintains its flexibility even in freezing conditions. As is the case for most Yale ropes, the strengths shown in the charts are for spliced ropes.
