This telescoping, rack and pinion style beam allows for handling of a wide variation of product lengths. Lifting beams are custom designed per application.

Telescopic magnet lifting beam show in the minimum spread position.

These Vacuum Lifting Beams are designed to handle large sheets or plates of metal in the primary metal industry as well as various other industries. Designed to your material weight and size requirements. Units can be operated with a pendant, crane mounted controls, or radio controls. Lifting beams are custom designed per application.

Custom designed Model 222 vacuum lifting beam with large square lifting pads that easily conform to loads.

Custom designed model 222 vacuum beam with adjustable round pads.

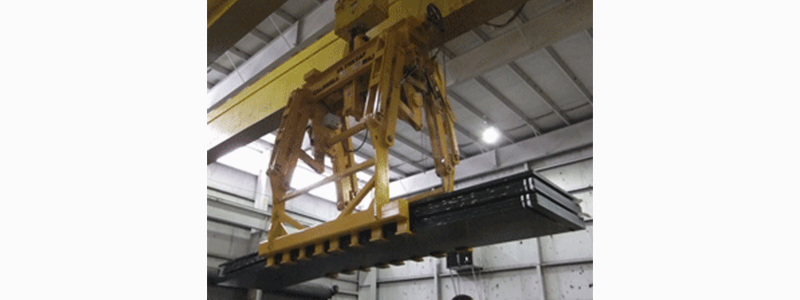

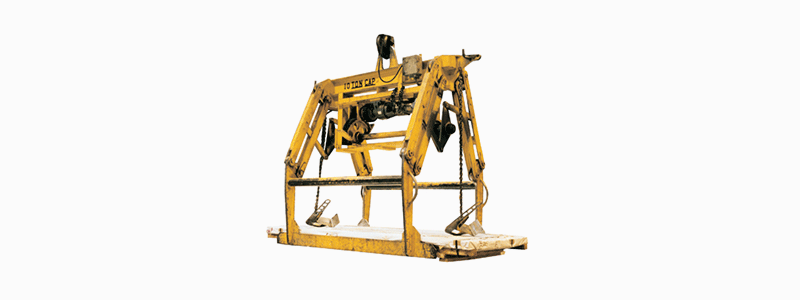

The motorized Parallelogram Leg Drive Sheet Lifter is ideal where space between sheet stacks in storage is limited. This style lifter is designed so that the weight of the stacks of sheets or plates keeps the lifter closed. Optional motorized rotation allows the crane operator to spot the stack with precise positioning. Lifters are custom designed per application.

This 25 ton lifter was assembled and tested on-site at a facility in Indiana by our experienced team.

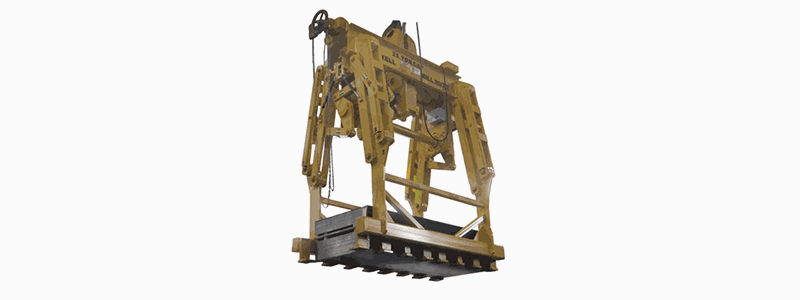

10 ton capacity model 266 parallelogram lifter with load (plate hooks not in use for this load).

Allows the crane operator to spot the stack with precise positioning.

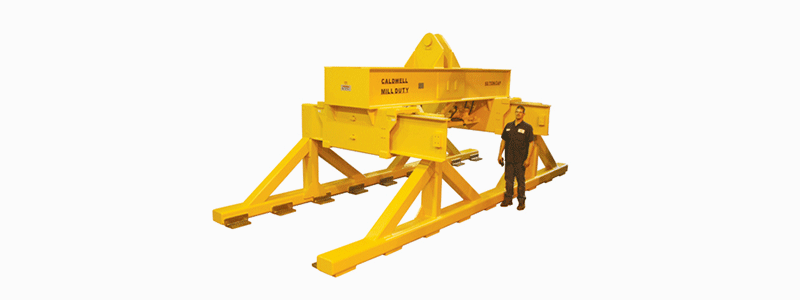

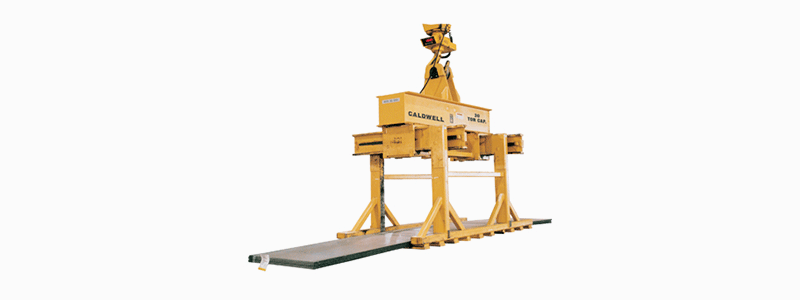

This rack and pinion style lifter allows for handling of a wide range of sheets and plates with minimum manpower. Lifters are custom designed per application.

30 ton capacity model 260 with special grab shoes shown lifting sheets.

60 ton model 260 shown with dunnage cutouts on carrying angle.

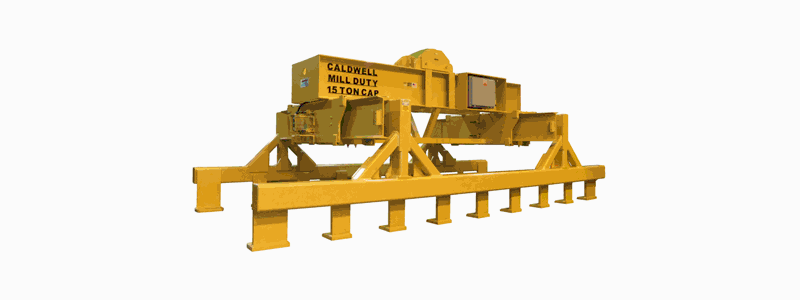

Model 260-15-130 Telescopic Sheet Lifter, 15 ton capacity shown.
