The same end fittings that build our high capacity spreader beams are available as end fittings only. This allows you to stock one or several sizes of end fittings; work with a local steel supplier to provide cut to length schedule 80 pipe drill accordingly; and add the required top rigging. Now you can respond to your customers needs with a quickly built, ASME compliant spreader beam.

Model HC-BEF - High Capacity Beam End Fittings shown.

Caldwell’s new High Capacity Spreader Beam is the solution you need to fill those orders where a quick delivery is required on beams with capacities ranging from 5 to 130 tons. Capacity and spread configurations are virtually limitless.

The chart below highlights sizes available from 50 to 130 tons. You can review our complete high capacity spreader beam chart, starting at 5 tons, online at www.caldwellinc.com. For beam customizations, please fill out an application evaluationform online or contact us with complete details and we will configure the high capacity spreader beam you need!

Model 30HC shown with chain rigging (used only for small capacity and span beams).

Model 30HC shown with wire rope rigging (not available in the QuickShip Program).

The same end fittings that build our four point spreader beams are available as end fittings only. This allows you to stock one or several sizes of end fittings; work with a local steel supplier to provide cut to length schedule 80 pipe; drill accordingly and add the required top rigging. Now you can respond to your customers needs with a quickly built, ASME compliant spreader beam.

Model BEF-FSB - Four Point Beam End Fitting shown.

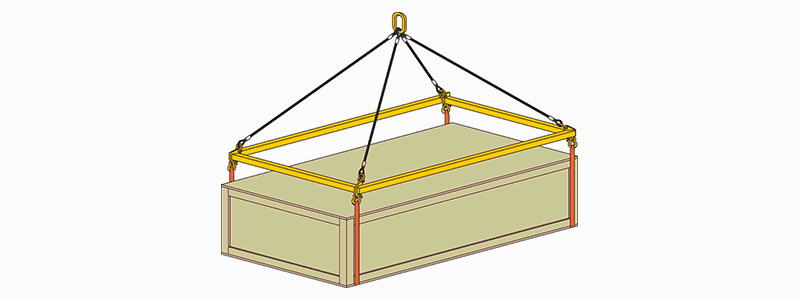

This series of special spreader systems can be designed to lift loads of almost any size, or weight. Certain adjustability characteristics allow for a wide range of usage as well as handling unbalanced loads where the center of gravity is substantially off center.

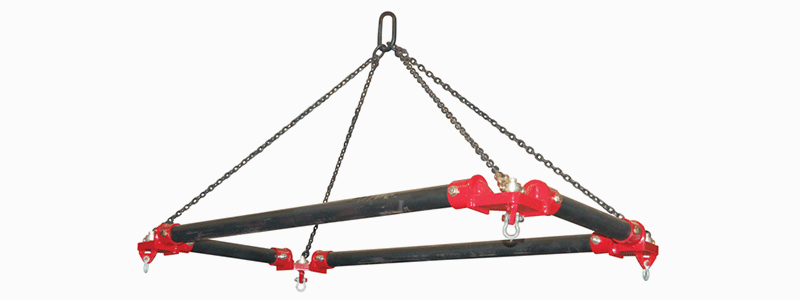

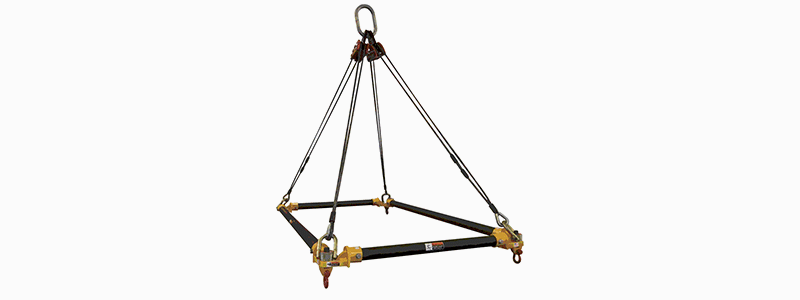

This beam is a convenient end fitting design that allows us to build a custom size four-point spreader beam with a QUICK SHIP delivery schedule. Capacities up to 9 tons and spreads up to 10’ x 10’.

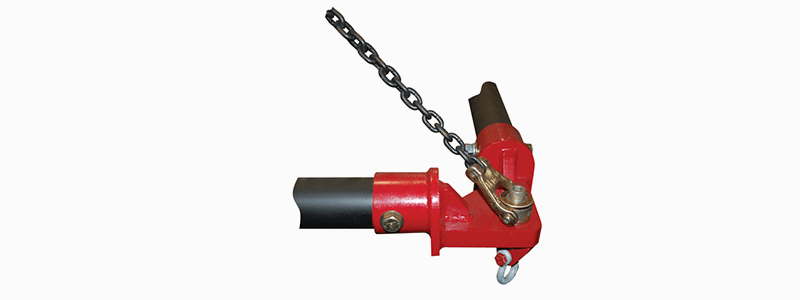

 Close-up of the Model 34 End Fitting.

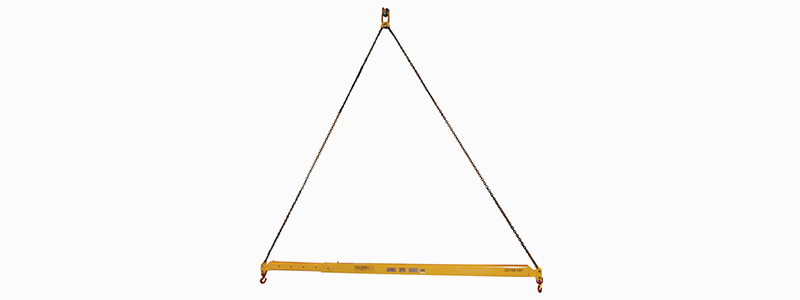

This is an adjustable spreader beam that provides a versatile solution for handling many different sized loads, ideal for outdoor applications.

20 ton model 32 spreader beam.

This is an adjustable spreader beam that provide a versatile solution for handling many different sized loads, ideal for outdoor applications.

Model 32C Adjustable Spreader Beam.

This is a fixed length spreader beam that provides an economical solution, ideal for lifting in outdoor applications.

Standard Model 30 Spreader beam shown with Option C, Chain Top Rigging.
